The perfect quick-mount rear rack system attaches to MTB full suspension seatstays or hardtail MTB. The next-generation rack design allows for a 66% increase in carrying capacity, with a maximum load of 22kg, to meet the needs of cyclists carrying more equipment during their travels.
NOTE :
*TetraRack is not recommended for carbon forks and seat stays
*TetraRack series racks are not compatible with front or rear mounted V-Brake type systems.
*KLICKfix. is a registered trademark of RIXEN & KAUL GmbH.
*Racktime. is a registered trademark of Tubus Carrier Systems GmbH.
| ATTACHMENTS | Seatstays with hook and loop straps |
| MATERIAL | Aluminum / Engineering grade polymer / Nylon straps |
| ADJUSTMENT | Strut slots |
| COMPATIBILITY | Topeak MTX TrunkBags & Baskets. KLICKfix® / RackTime® Snapit 1.0 or Vario system bags TETRARACK FENDER M2 / TETRARACK SIDE FRAME |
| MAX LOAD | 22 kg / 48.5 lb |
| SIZE | 47.5 x 38.5 x 13.5 cm / 18.7" x 15.1" x 5.3" |
| WEIGHT | 1.25 kg / 2.75 lb |
| ADDED FEATURE | Clamp for rear reflector, Tail light mount, Dropout eyelet mount |

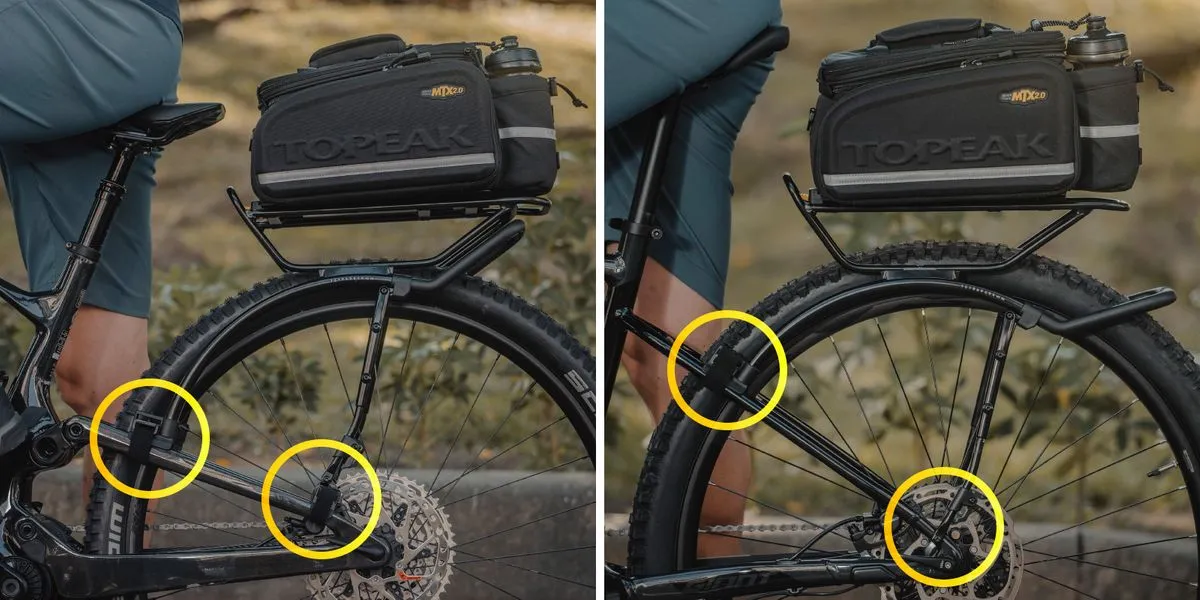

MOUNTING OPTIONS
1. Strap Strap Mount 2. Strap Dropout Eyelet Mount

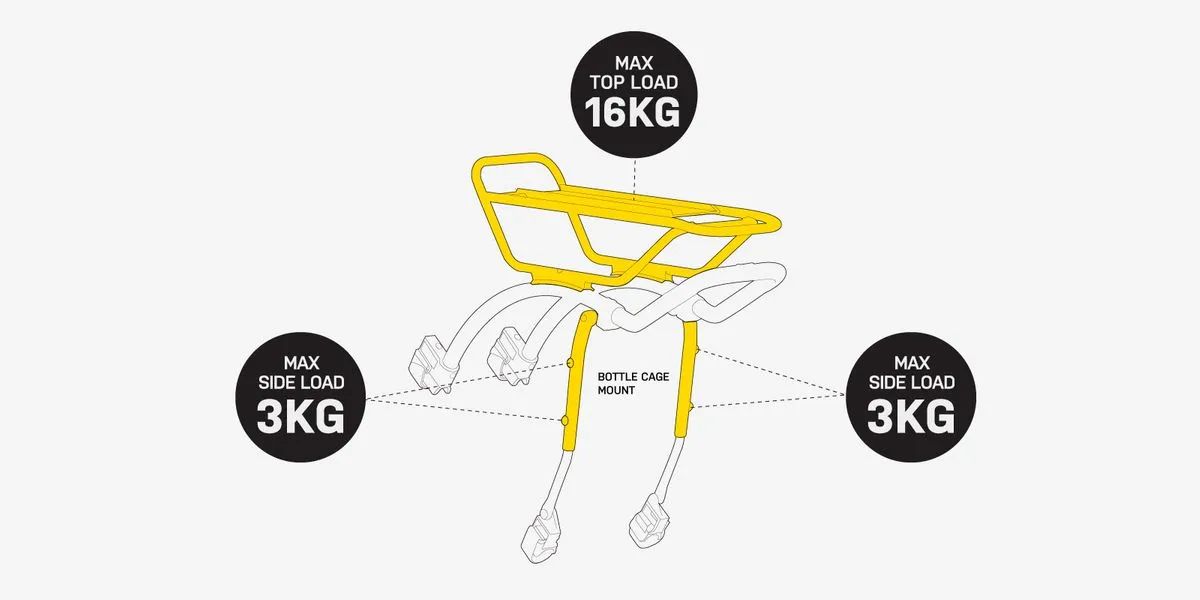

MAX LOAD IN TOTAL 22KG

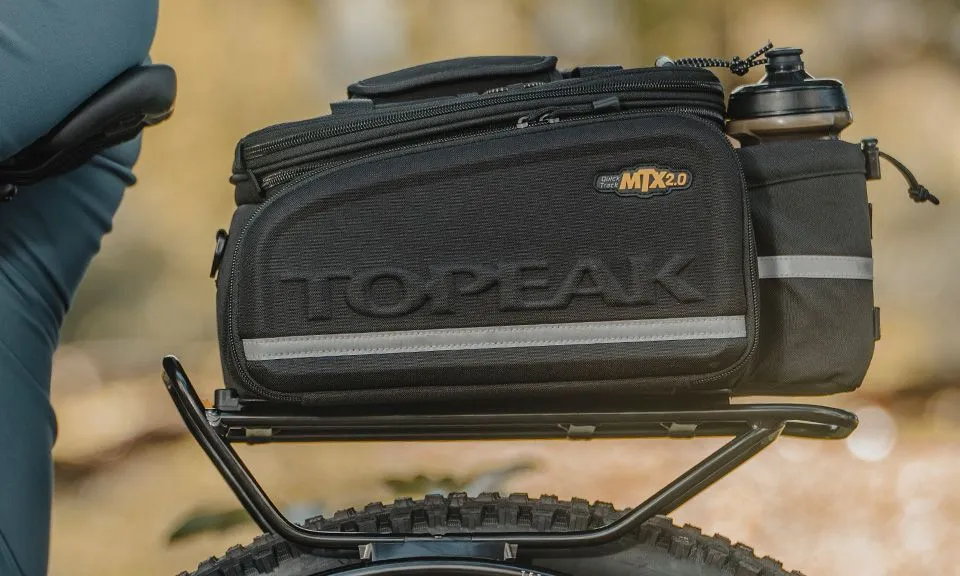

QUICKTRACK® SYSTEM
Compatible with Topeak QuickTrack® system, KLICKfix® / RackTime® Snapit or Vario system bags.

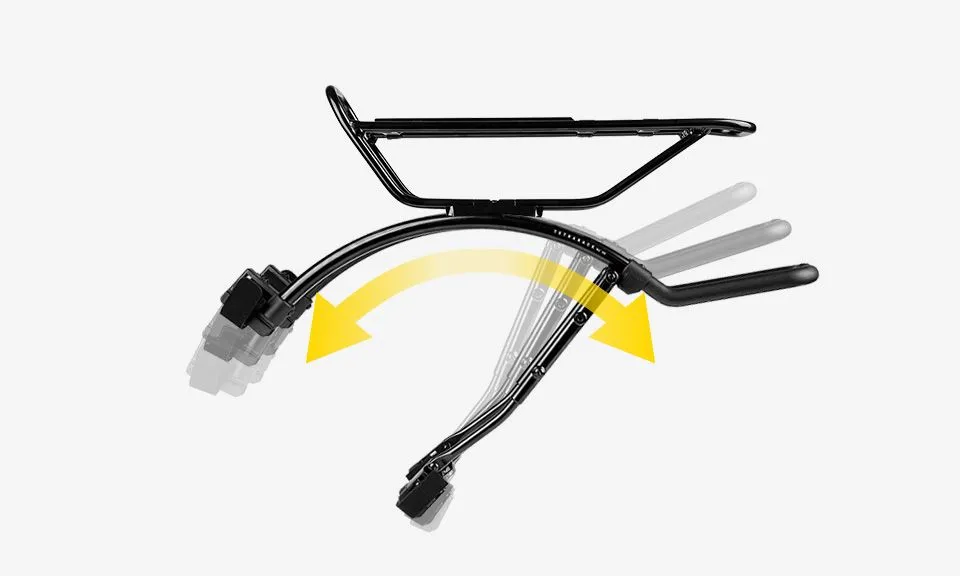

STRUT SLOT ADJUSTMENTS
Allow the rack top plate to be level independent of the seatstay angle

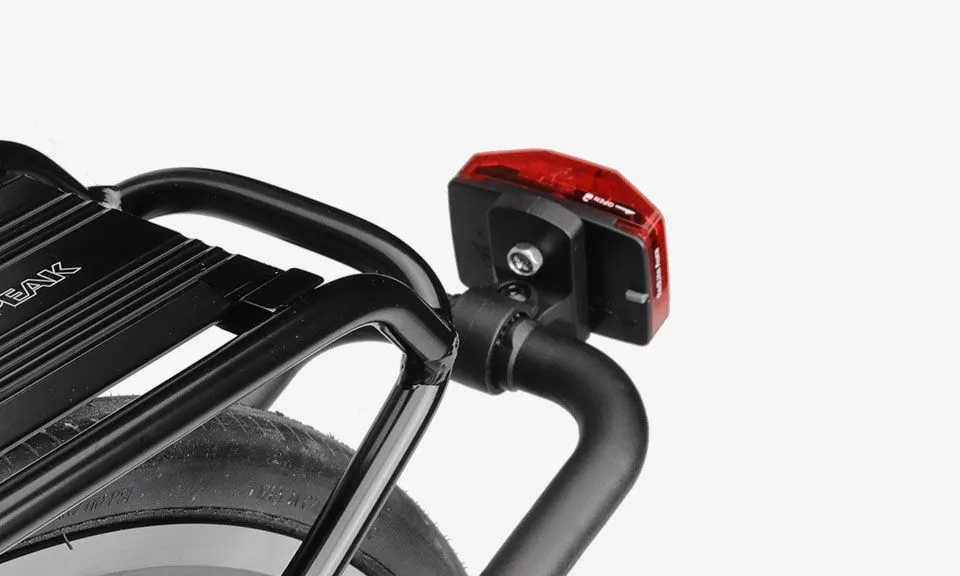

CLAMP FOR REAR REFLECTOR

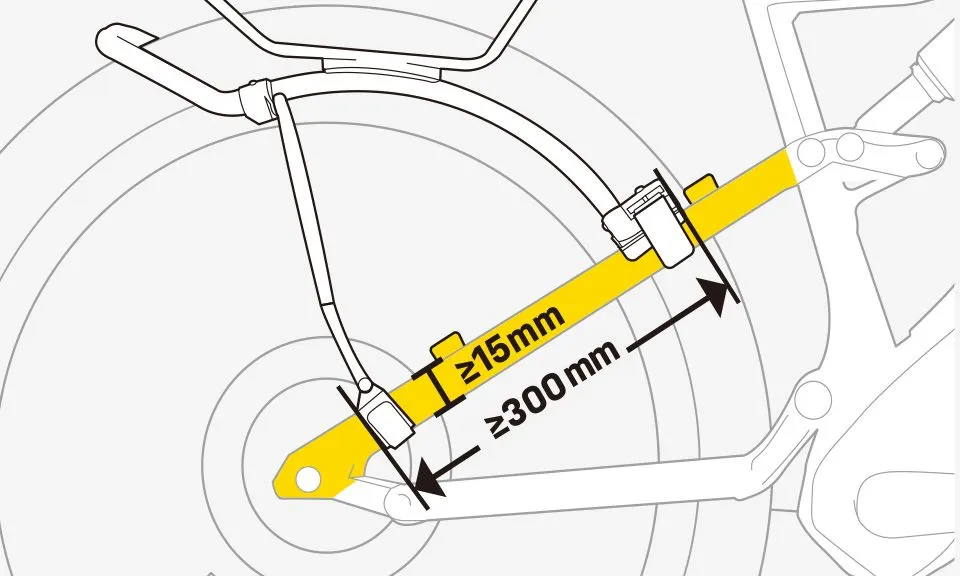

- TetraRack has a mounting length of 300mm. Seatstay diameter must be larger than 15mm.

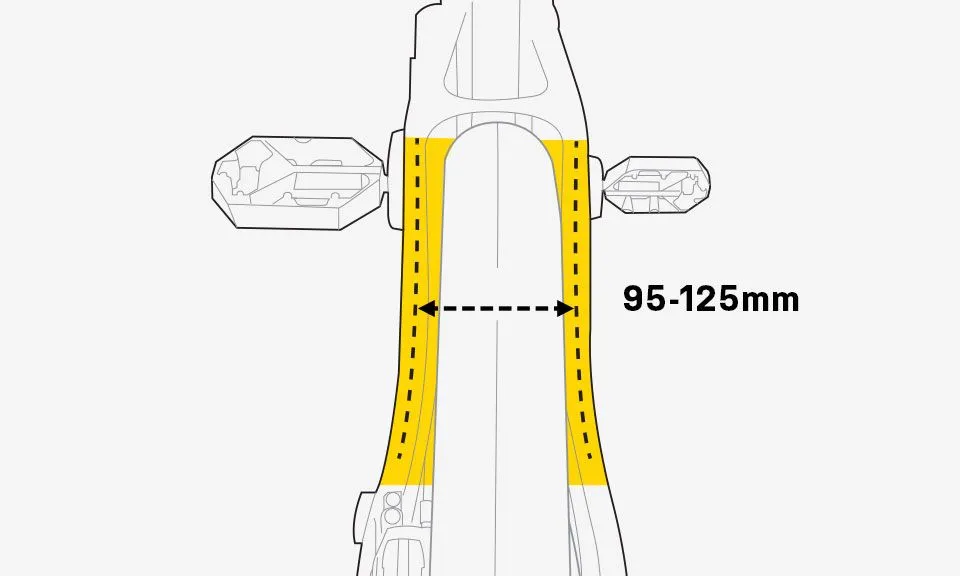

- Compatible with seatstays width within 95-125mm. Ensure not to exceed max weight capacity.
- The seatstay angle must be over 25 degrees for proper operation.
